In Panzer Tracts No.3-3: Panzerkampfwagen III Ausf.J, L, M & N, Thomas Jentz and Hilary Doyle document the development and production of the final four versions of Panzerkampfwagen III.

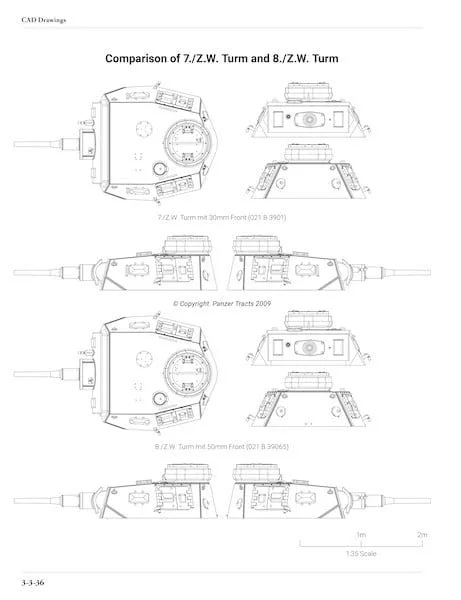

The Panzer Tracts team has produced highly accurate 1:35 scale CAD drawings for three Ausf.J, four Ausf.L, one Ausf.M and four Ausf.N. Additionally, the various versions of basic hull and turret are shown. No less than 12 pages of 1:10 scale CAD drawings show specific components, tools and holders.

The team spent hundreds of hours travelling the world and accurately measuring surviving Panzerkampfwagen III; they then used a CAD program to draw at full 1:1 scale and printed at 1:35 or 1:10 scale to produce these as-built drawings within the tolerance allowed to the original assembly firms.

The text covers the evolution of the Ausf.J – N and their various modifications. Production statistics and allocations of chassis numbers to assembly plants help to identify vehicles in the field.

Working closely with Hilary Doyle, Panzerwrecks has overhauled this important book with more pages and photographs. It is a must-have for accurate information and scale drawings on the Panzerkampfwagen III Ausf.J, L, M, and N.

Book Data

Authors: Thomas Jentz & Hilary Doyle
ISBN: 9781915969293
Language: English
Pages: 102
Photos: 76
CAD Drawings: 40 pages
Physical: Softcover, 280x215mm, portrait

Contents

1. Introduction

2. Panzerkampfwagen III (5cm) (Sd.Kfz.141) Ausf.J

3. 8.Serie/Z.W. (Pz.Kpfw.III Ausf.J, L, M & N)

4. CAD Drawings

5. Panzerkampfwagen III (5cm Kw.K.39 L/60) (Sd.Kfz.141/1) Ausf.L

6. Panzerkampfwagen III (5cm Kw.K.39 L/60) (Sd.Kfz.141/1) Ausf.M

7. Panzerkampfwagen III (7.5cm Kw.K. L/24) (Sd.Kfz.141/2) Ausf.N

Improvements

• 14 more pages

• Five more photographs

• Rewritten captions

• Reworked images for clarity and tonal quality

• Clearer layout and navigation

• Table of Contents

• Vertical title block on the covers

• Perfect bound for durability
